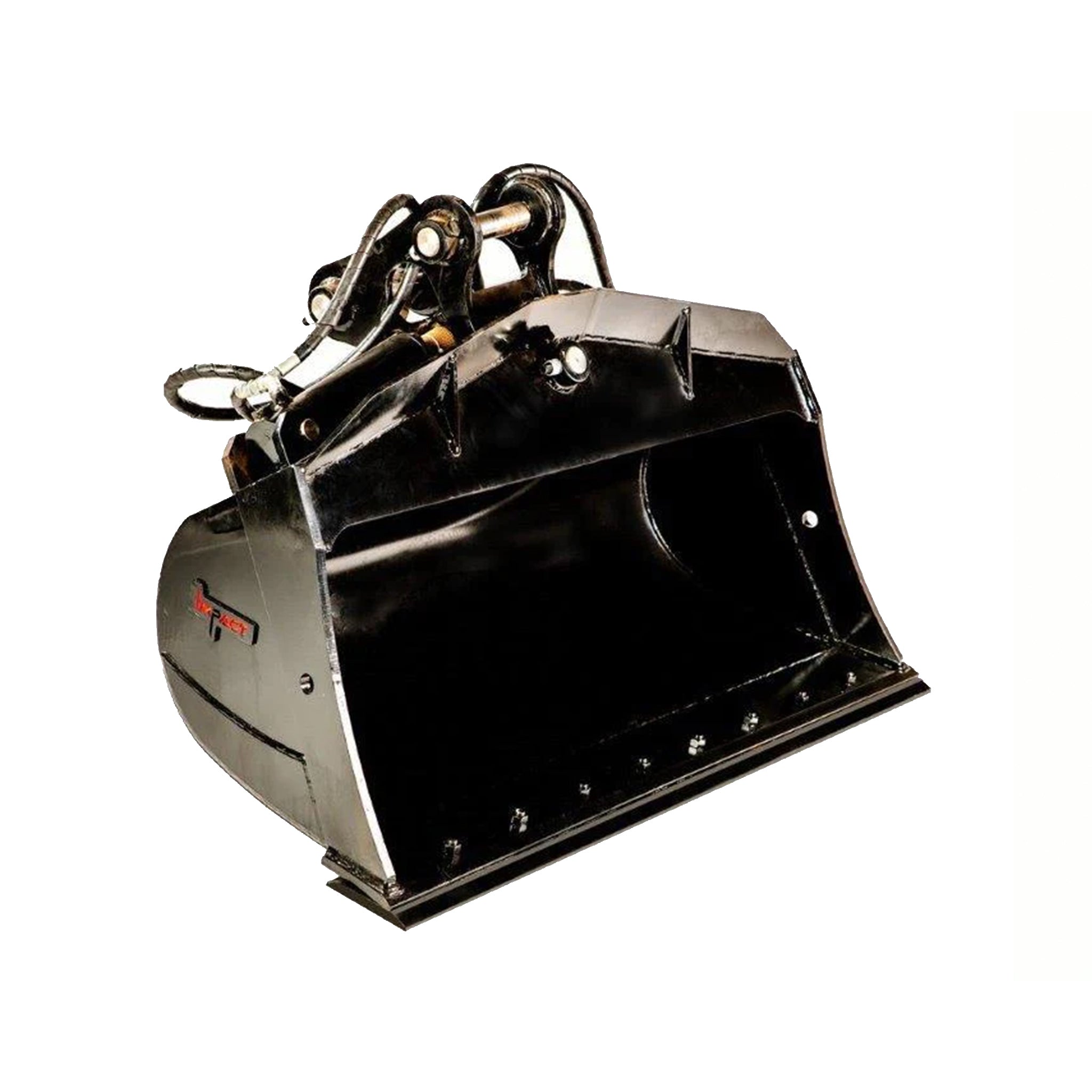

• Impact brand hydraulic tilt bucket attachment for excavators, designed for superior versatility in digging, grading, and leveling tasks. This durable tilt bucket enhances precision and efficiency on construction sites, offering operators better control and performance in various earthmoving projects.

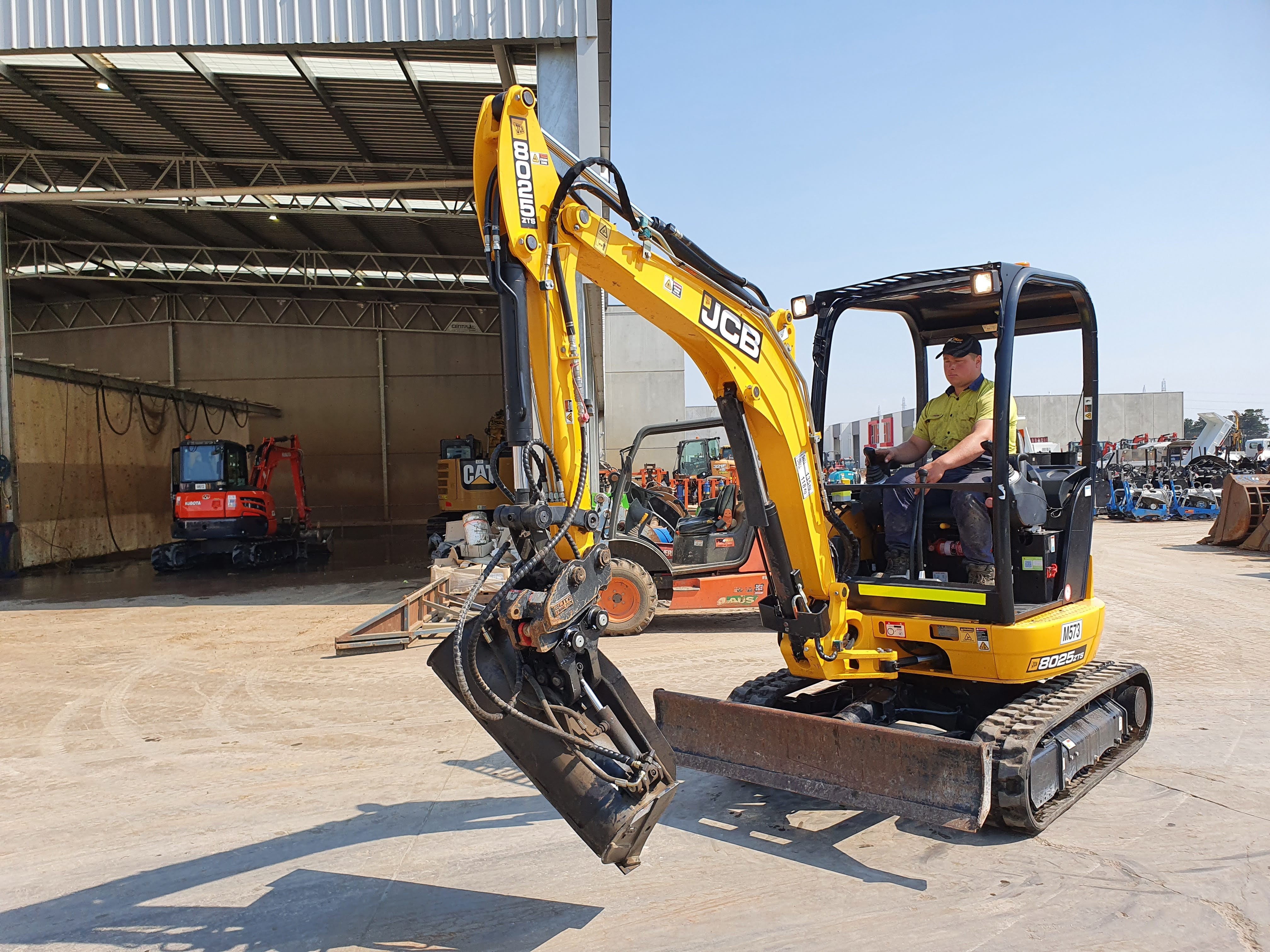

  • JCB mini excavator equipped with a hydraulic tilt bucket attachment, expertly maneuvered by an operator. This compact construction equipment is ideal for precision digging, grading, and landscaping tasks, offering versatile performance in tight spaces. The durable design and advanced features ensure efficient operation in various construction and earthmoving projects.
  • ITB300 1200mm tilting mud bucket 2.5t excavator
  • ITB300 1200mm tilting mud bucket 2.5t excavator
  • ITB300 1200mm tilting mud bucket 2.5t excavator
  • ITB300 1200mm tilting mud bucket 2.5t excavator

ITB300 1200mm tilting mud bucket 2.5t excavator

  • Hydraulic hoses, hydraulic 1/2" couplers and 12 month warranty
Ready to ship
Product Details
Tilt angle: 45°

Pins: 30mm  |   Pin Centers: 110mm  |   Between the Ears: 139mm

Description: The Impact ITB300 dual ram, hydraulically actuated tilt ditching buckets allow 45 degrees of tilt in each direction, and are ideal for finish grading and shaping work.


Operating pressure: 160 BAR

Req. flow: 25-40 LPM


View Brochure
Width
1200 mm
Weight
168 kg
Suited For
2.5-3.5T excavator
GET
Bolt On edge
Pins
30mm | Pin Centers: 110mm | Between the Ears: 139mm

Share

Share on Facebook Tweet Pin it

key specs

Width
1200 mm
Weight
168 kg
Suited For
2.5-3.5T excavator
GET
Bolt On edge
Pins
30mm | Pin Centers: 110mm | Between the Ears: 139mm
