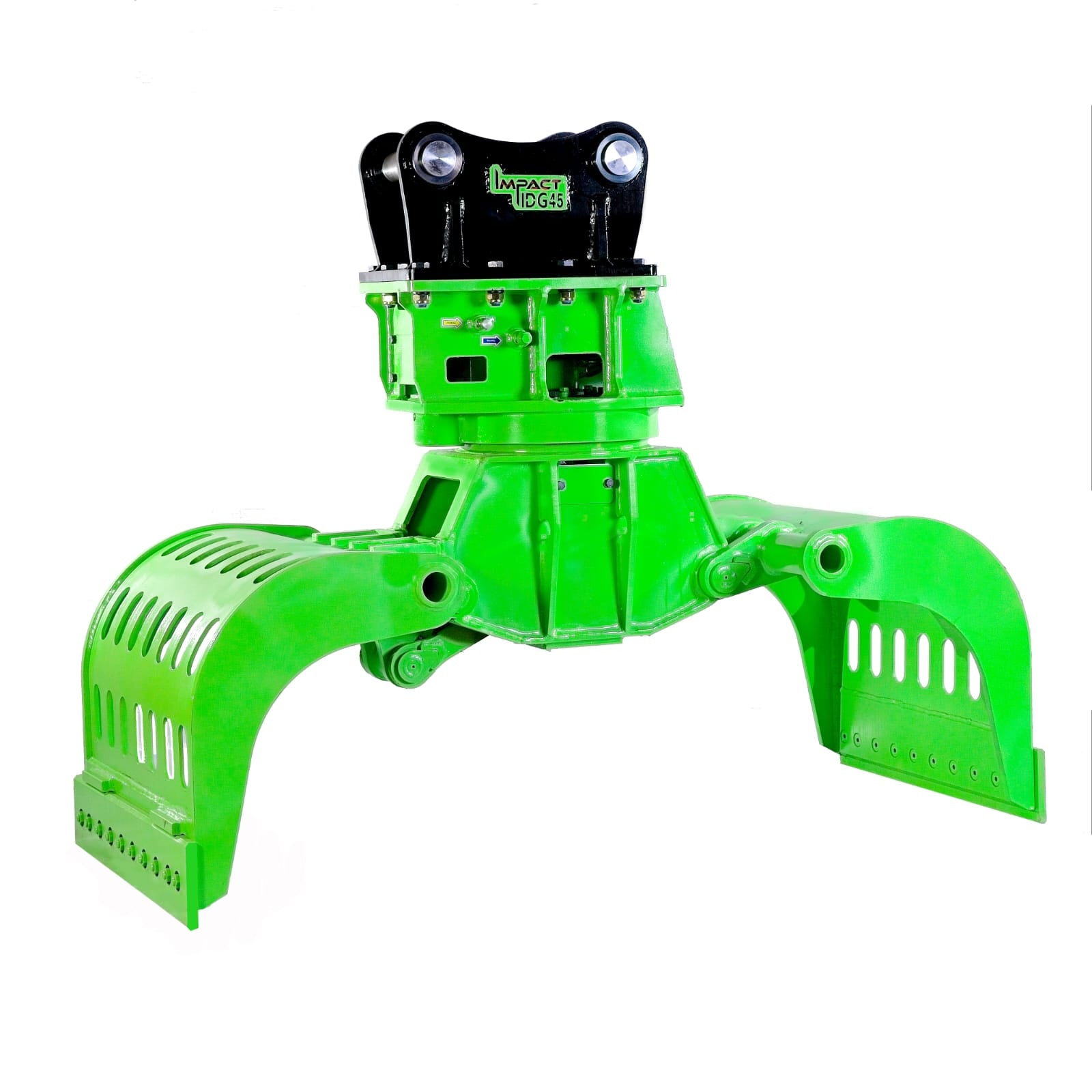

Hydraulic Rotating Grab to suit 20-30t Excavator
Couldn't load pickup availability
Easy Maintenance
Designed for easy maintenance, built with durable materials and accessible parts for straightforward, low-maintenance servicing.
Got questions?
Feel free to get in touch
Ask an expert!
View Brochure: Click Here
Suited for: 20-30t
Weight: 1400kgs
Width: 1000mm
Opening 2000mm
Max Tine Pressure: 320 BAR
Max Rotation Pressure: 150BAR
Required Tine Flow: 100LPM
Required Rotation Flow: 30LPM
Includes Hydraulic hoses/fittings and case drain

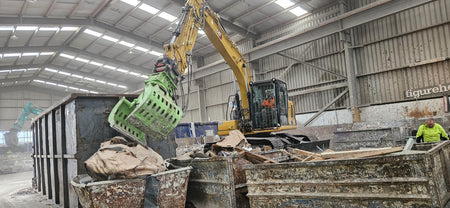

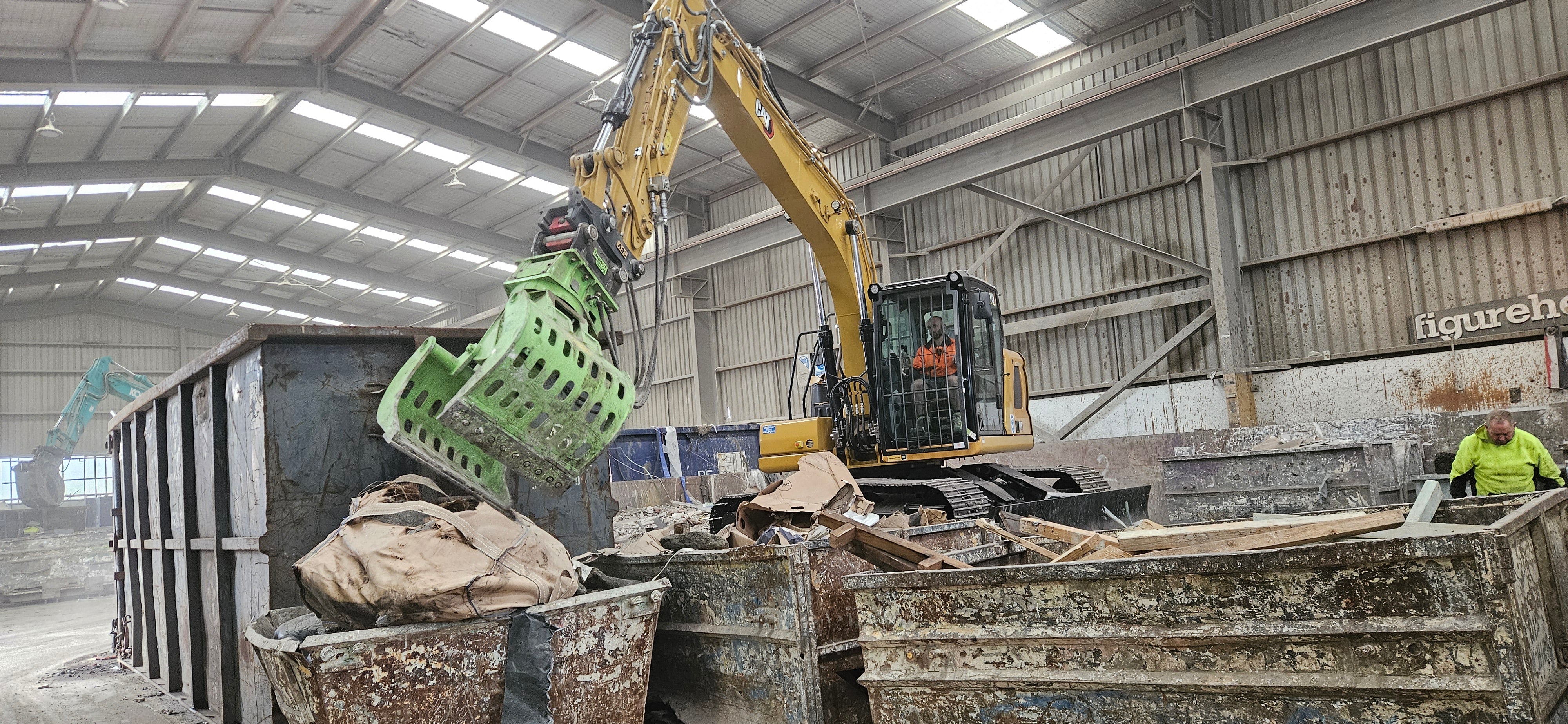

The Impact Rotating Grab is designed and manufactured to enable excavators to pick up and place multiple materials with pin point accuracy. With a large opening range and 360 degree rotating ability, this attachment is the ultimate masterpiece when it comes to demolition, rock placement and many other applications. Comes complete with all hydraulic hoses and fittings.
