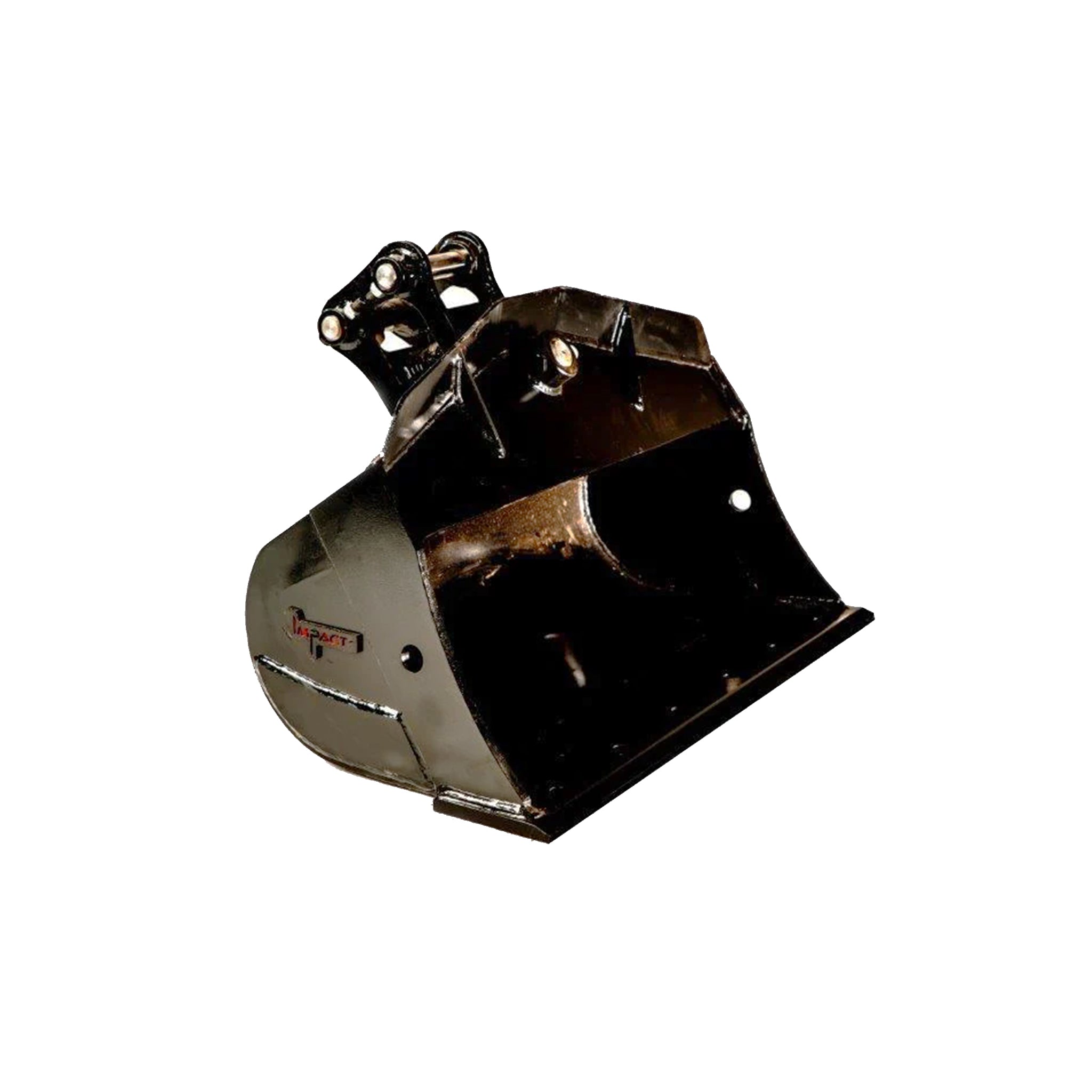

• Impact brand hydraulic tilt bucket attachment for excavators, designed for superior versatility in digging, grading, and leveling tasks. This durable tilt bucket enhances precision and efficiency on construction sites, offering operators better control and performance in various earthmoving projects.

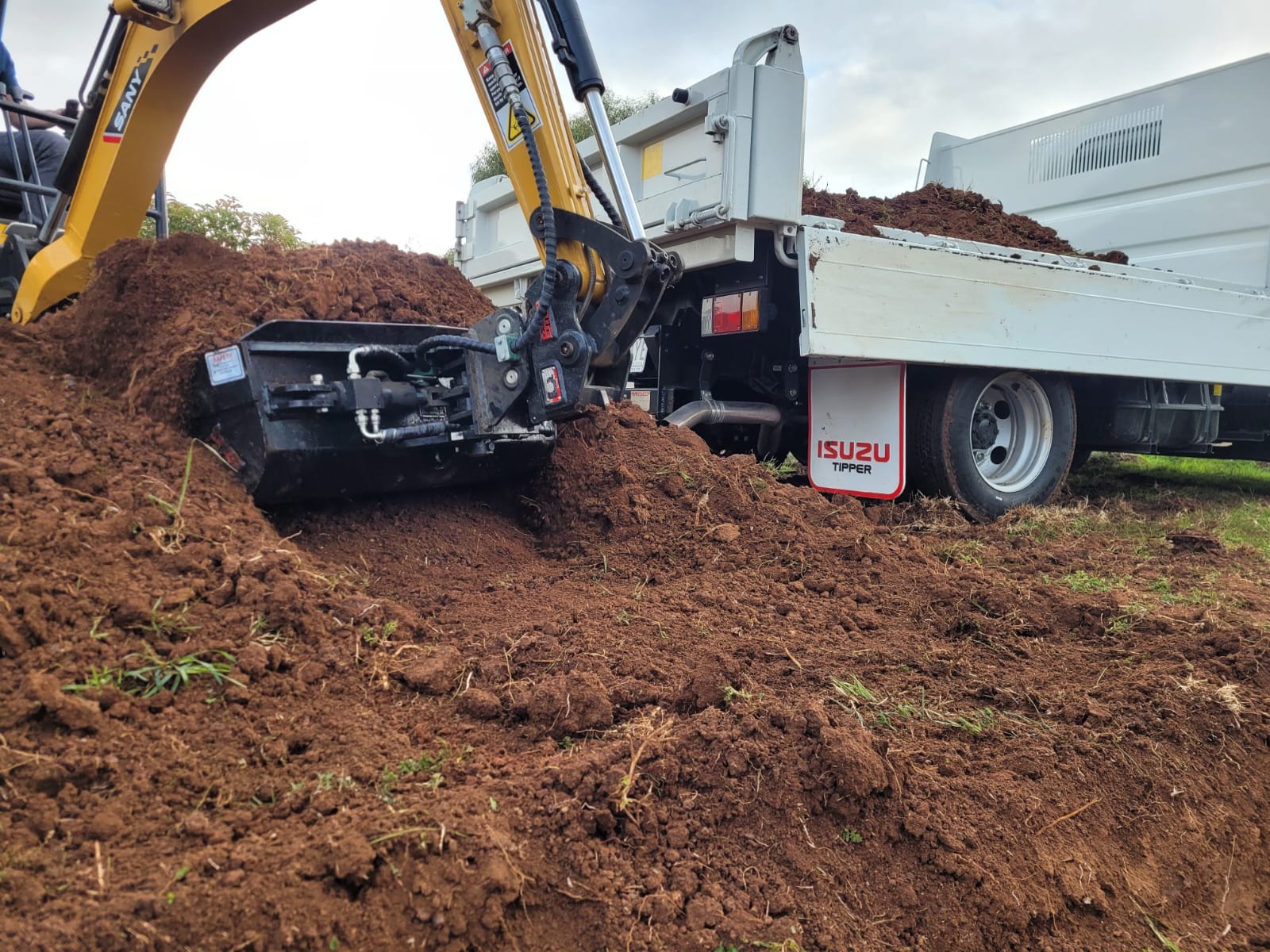

  • xcavator equipped with a hydraulic tilt bucket attachment, expertly maneuvered by an operator. This compact construction equipment is ideal for precision digging, grading, and landscaping tasks, offering versatile performance in tight spaces. The durable design and advanced features ensure efficient operation in various construction and earthmoving projects.

ITB200 960mm Tilting Mud Bucket Attachment for 1.7T Excavator

  • Tilt angle 45°
Ready to ship
Product Details

Tilt angle: 45°

Pins: 30mm  |   Pin Centers: 105mm  |   Between the Ears: 105mm

Description: The Impact ITB200 single ram, hydraulically actuated tilt ditching buckets allow up to 45 degrees of tilt in each direction, and are ideal for finish grading and shaping work.

Operating pressure: 160 BAR

Req. flow: 25-40 LPM

View Brochure

Width
960 mm
Weight
130kgs
Suited For
1.7T excavator
GET
Bolt on Edge
Pins
30mm | Pin Centers: 105mm | Between the Ears: 105mm

Share

Share on Facebook Tweet Pin it

key specs

Width
960 mm
Weight
130kgs
Suited For
1.7T excavator
GET
Bolt on Edge
Pins
30mm | Pin Centers: 105mm | Between the Ears: 105mm
