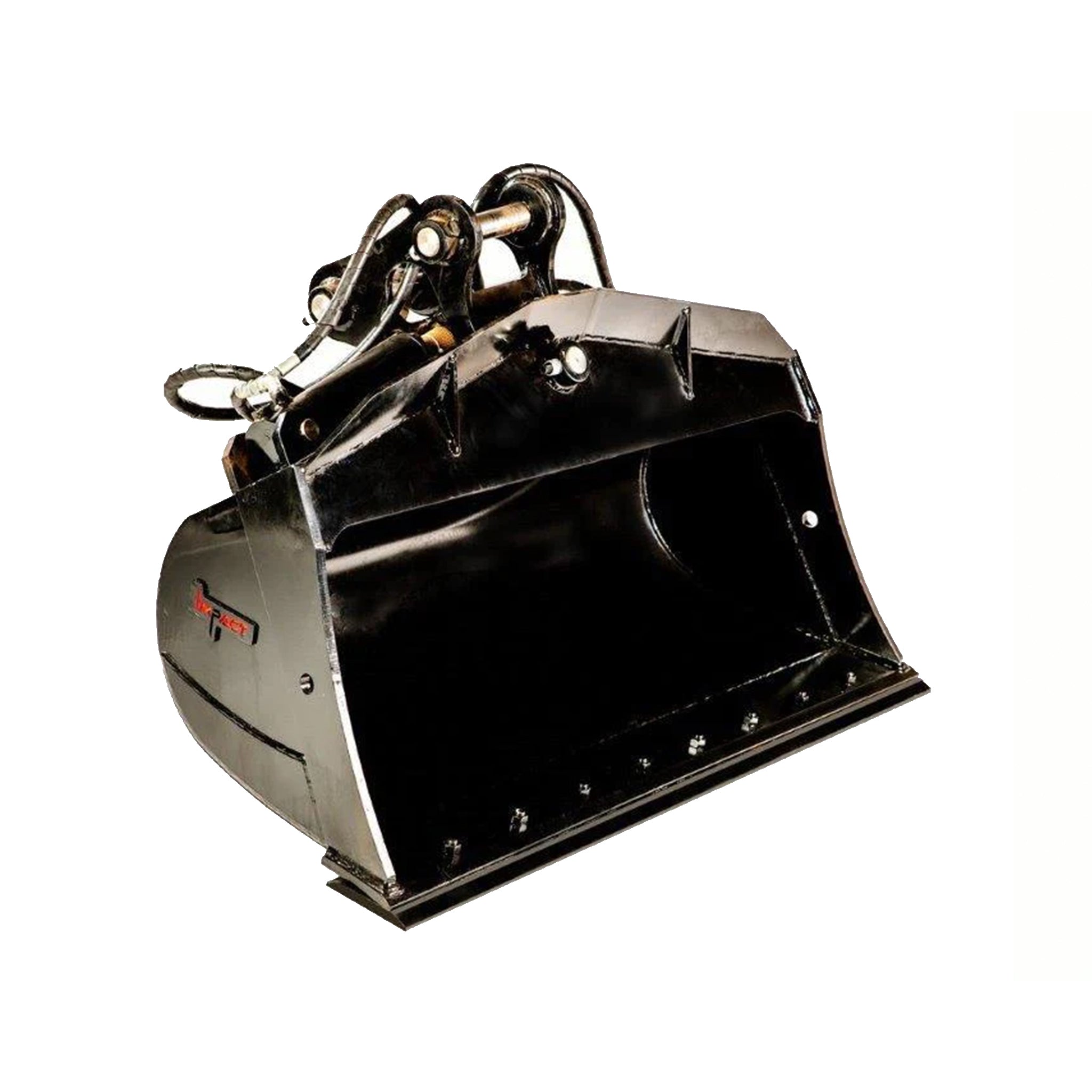

• Impact brand hydraulic tilt bucket attachment for excavators, designed for superior versatility in digging, grading, and leveling tasks. This durable tilt bucket enhances precision and efficiency on construction sites, offering operators better control and performance in various earthmoving projects.

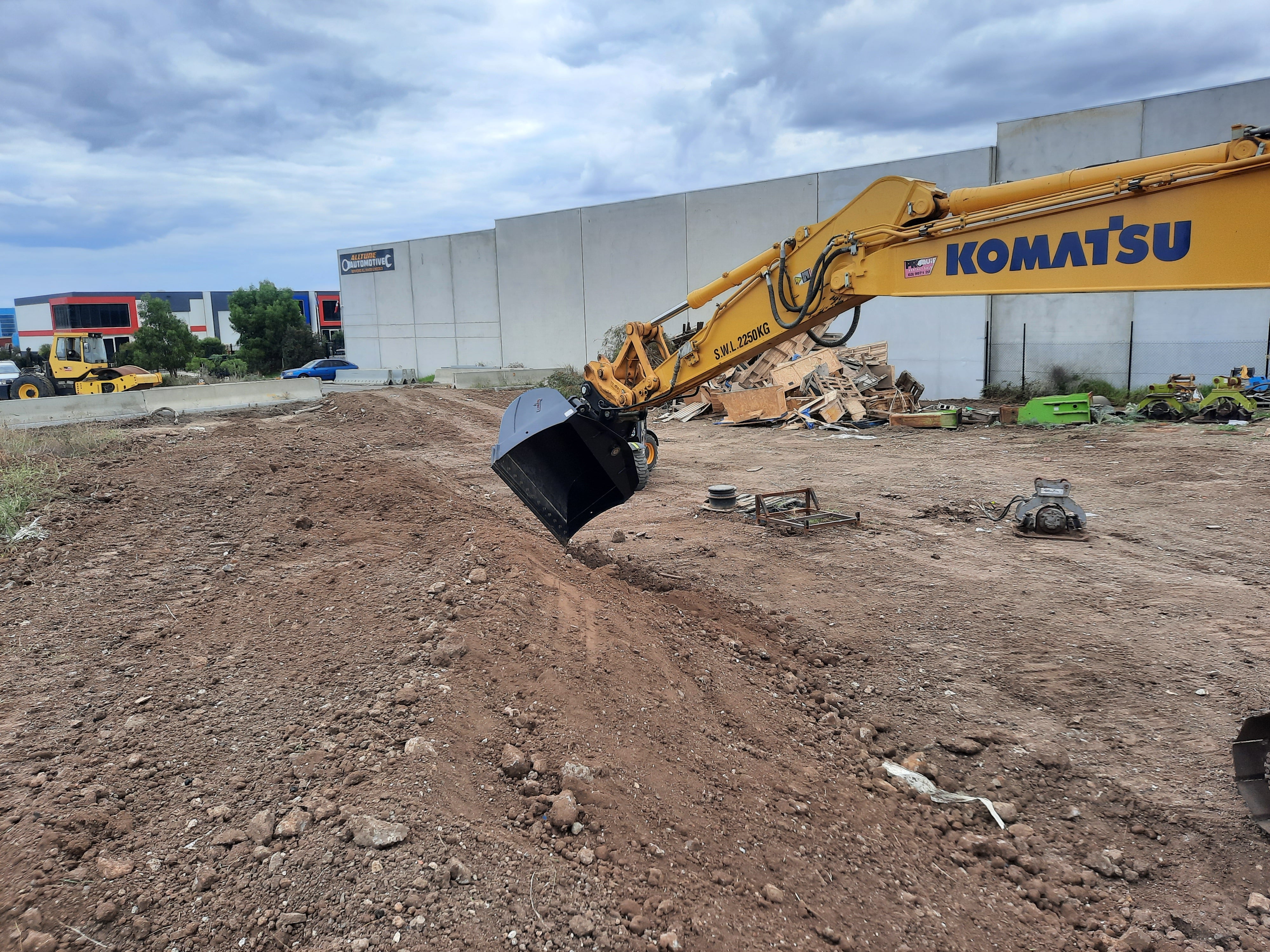

  • Komatsu excavator equipped with an Impact 4-in-1 bucket performing earthmoving operations on a construction site. The image highlights the versatility of the Impact 4-in-1 bucket attachment, ideal for digging, grading, and material handling in construction projects. Perfect for contractors looking for efficient and reliable excavator attachments compatible with Komatsu machinery.

ITB500 1700mm Tilting Mud Bucket Attachment for 12-15T Excavator

  • Tilt angle 45°
Ready to ship
Product Details
Tilt angle: 45°

Pins: 65mm  |   Pin Centers: 375mm  |   Between the Ears: 260mm

Description: The Impact ITB500 dual ram, hydraulically actuated tilt ditching buckets allow 45 degrees of tilt in each direction, and are ideal for finish grading and shaping work.


Operating pressure: 220 BAR

Req. flow: 90-100 LPM


View Brochure
Width
1700 mm
Weight
589 kg
Suited For
12-15T excavator

Share

Share on Facebook Tweet Pin it

key specs

Width
1700 mm
Weight
589 kg
Suited For
12-15T excavator
