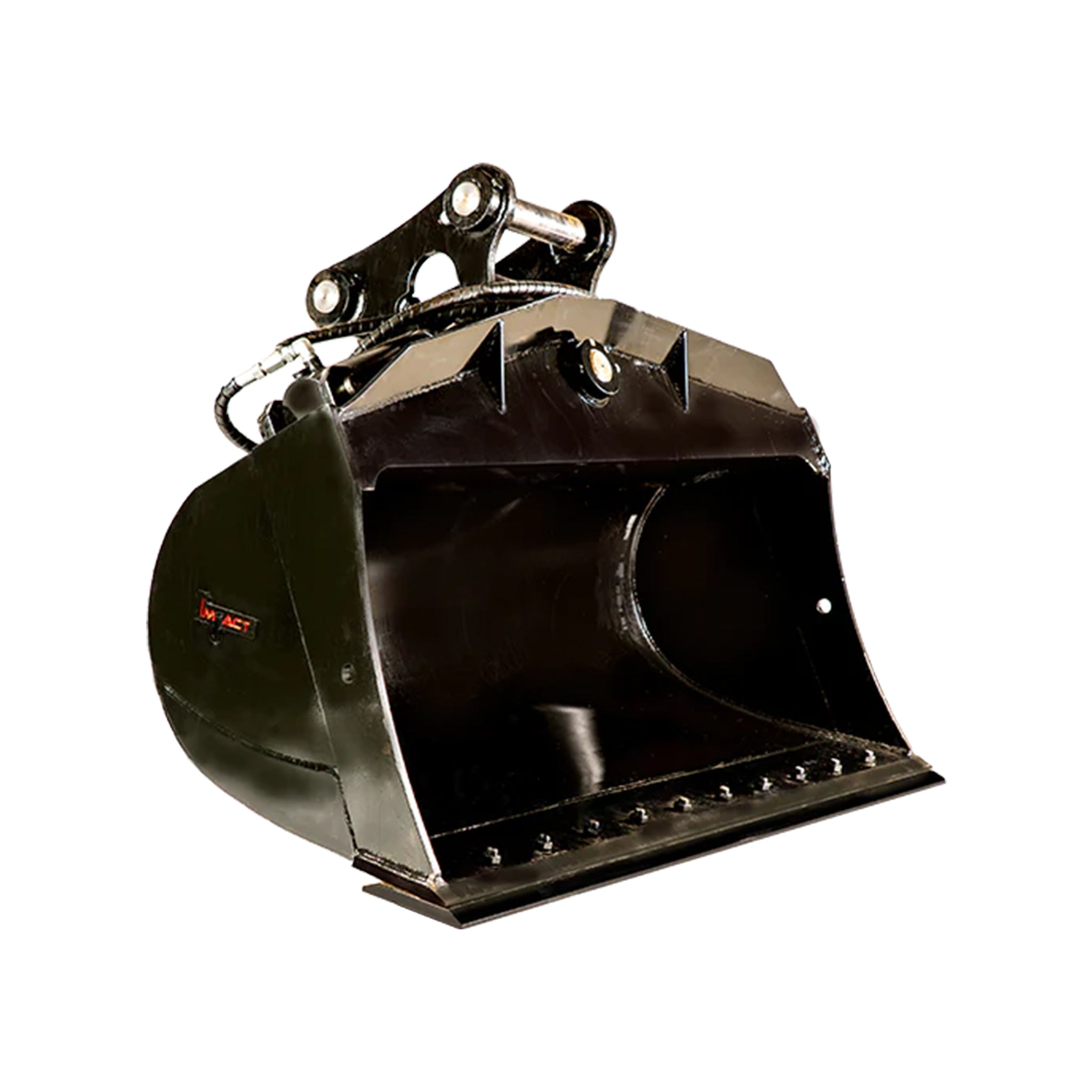

Impact brand hydraulic tilt bucket attachment for excavators, designed for superior versatility in digging, grading, and leveling tasks. This durable tilt bucket enhances precision and efficiency on construction sites, offering operators better control and performance in various earthmoving projects.

ITB400 1400mm Tilting Mud Bucket Attachment for 4.5-5.5T Excavator

  • Tilt angle 45°
Ready to ship
Product Details
Tilt angle: 45°

Description: The Impact ITB400 dual ram, hydraulically actuated tilt ditching buckets allow 45 degrees of tilt in each direction, and are ideal for finish grading and shaping work.


Operating pressure: 200 BAR

Req. flow: 50-100 LPM


View Brochure
Width
1400 mm
Weight
326 kg
Suited For
4.5-5.5T excavator
GET
BOE
Pins
Pins: 45mm | Pin Centers: 250mm | Between the Ears: 160mm

Share

Share on Facebook Tweet Pin it

key specs

Width
1400 mm
Weight
326 kg
Suited For
4.5-5.5T excavator
GET
BOE
Pins
Pins: 45mm | Pin Centers: 250mm | Between the Ears: 160mm
